What is a Press Brake?

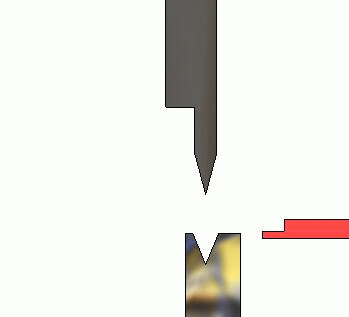

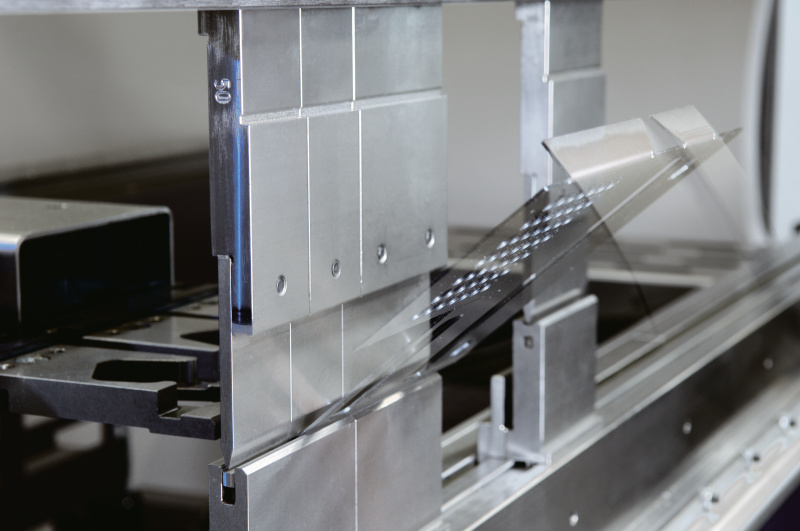

A press brake is a vital machine tool used in metalworking for bending sheet metal and metal plates into specific shapes. This is achieved by clamping the workpiece between an upper tool, known as the punch, and a lower tool, called the die.

By applying significant force, the press brake creates precise, predetermined bends in the material. These machines are versatile and can bend metal multiple times to achieve complex geometries. The bending capability is determined by the machine’s bending length and its capacity to bend metal of a certain thickness. Bending machines are essential for transforming flat metal sheets into three-dimensional components required across numerous industries.

Types of Press Brakes

Press brakes are available in several types, each with its own mechanism for generating bending force. The main categories include:

• Mechanical Press Brakes: These were the dominant type until the mid-20th century. They use an electric motor to power a flywheel, which spins at high speed. A clutch mechanism engages with the flywheel to control the bending action. While simpler in electronics, a key characteristic is that the ram must complete a full cycle once engaged.
• Hydraulic Press Brakes: These became popular due to advancements in hydraulics and computer controls. They use hydraulic pressure to push the ram down, offering greater control over the bend, especially in machines with multiple cylinders. Subcategories include nut-stop hydraulic and synchro hydraulic brakes, which differ in ram movement control. However, they cannot exceed their rated tonnage.
• Electric Press Brakes: Including servo-electric models, these use electric motors to drive the bending mechanism, often through ballscrews or belt drives.
• Hybrid Press Brakes: These combine features of different types to optimize performance.
• Pneumatic Press Brakes: These use compressed air to generate the bending force.

The choice of bending machine depends on factors like the required bending force, precision, speed, and the specific bending tasks.

Main Components of a Press Brake

A bending machine consists of several key components that work together to bend metal accurately. These include:

• C-frames: Typically, two robust C-shaped frames form the sides of the press brake, providing structural integrity.
• Table: Located at the bottom, the table connects the C-frames and serves as a mounting surface for the bottom tool (die).
• Movable beam (Ram): Situated at the top, this beam also connects the C-frames and holds the top tool (punch). The ram moves downwards to apply the bending force.
• Bottom tool (Die): Mounted on the table, the die has a specific shape or profile that dictates the form of the bend.
• Top tool (Punch): Attached to the movable beam, the punch is pressed into the die, causing the workpiece to bend according to the tooling’s contours.
• Back gauge: This crucial device accurately positions the workpiece along a specific axis, ensuring the bend occurs at the intended location. It can often be programmed for complex, multi-bend parts.
• Control Panel: Modern press brakes often include a control panel, sometimes with CNC capabilities, allowing operators to program and execute complex bending sequences with high precision.
• Hydraulic or Electric Systems: Depending on the type of bending machine, the machine will have either a hydraulic system with cylinders or an electric system with motors to power the movement of the ram.

Understanding these components is essential for operating and maintaining press brakes effectively.

Applications of Press Brakes

Bending machines are incredibly versatile machines with applications across a wide range of industries. Some key sectors and their applications include:

• Automotive Industry: Manufacturing body panels, chassis components, frame components, structural parts, exhaust systems, brackets, and metal sheet parts for windows and doors.
• Aerospace Industry: Creating enclosures for engines, brackets, parts for wing and landing gear assembly, body frames of aircraft and space vehicles, interior components, and bending high-strength metal alloys.
• Construction Industry: Producing panels and sheets for roofing and tile cladding, metal decorations, frames for doors and windows, structural metal sheets for beams and pillars, metal staircases, reinforcement bars, and architectural metalwork.
• Electrical Equipment and Power Industry: Fabricating electrical enclosures for industrial machines, control cabinets, panels for housing switchgear, junction boxes, and components for appliances like air conditioning shells and refrigerator parts. They are also used in elevator manufacturing.
• HVAC (Heating, Ventilation, and Air Conditioning): Creating shells for air conditioning units, air handling units, parts for ventilation systems, and sheet metal ductwork including ducts, vents, and flanges.
• Furniture and Consumer Goods: Manufacturing frames for furniture, brackets, legs, support structures, components for woodworking machines, cabinets, refrigerator parts, appliance housings, and cupboard panels.
• Medical Equipment: Creating frames for large equipment, mounting brackets, hospital beds and stretchers, surgical tools, and diagnostic machines.
• Industrial Machinery and Equipment: Used in the fabrication of drilling machine parts, storage tanks for oil, tanks and parts for pressure vessels, safety device parts, parts for mining equipment, lamp poles, power poles, enclosures for communication boxes, and server designs.
• Signage and Decorative Elements: Creating letters and logos for metal sheet signage and decorative frames and borders.
• Telecommunications: Producing enclosures for communication boxes, brackets for mounting telecommunication devices, infrastructure for laying network cables, communication systems, and server design.
• Food Processing and Catering: Manufacturing kitchen countertops, metal shelves and cabinets, catering equipment like trays and serving utensils, and machines used in food processing facilities and restaurants.
• Defense and Military: Producing containers for ammunition, defense vehicles, armored vehicles, armor plates, and various types of arms.
• Plumbing: Manufacturing pipes and ductwork, mounting brackets for sanitaryware, and metal supports.
• Energy and Renewable Industries: Particularly in the production of solar panel mounting systems and racks.
• Minting and Jewelry: Used in coining and stamping processes requiring intricate detail and high accuracy.
• Custom Metal Fabrication and Prototyping: Bending sheet metal into different designs and shapes according to specific requirements.

This extensive list highlights the critical role press brakes play in modern manufacturing across diverse sectors.

Summary and Industry Outlook

Press brakes are indispensable tools in the metalworking industry, providing the precision and versatility needed to shape sheet metal into a vast array of components. Their ability to handle various materials and thicknesses makes them essential in numerous sectors, from automotive and aerospace to construction and consumer goods. The evolution of bending machine technology, from mechanical to hydraulic and electric systems, along with the integration of computer controls, has significantly enhanced their accuracy, efficiency, and productivity.

The industry outlook for press brakes remains positive, with experts predicting continued growth driven by rising demand in key sectors like automotive, aerospace, and construction. Ongoing technological advancements, such as the integration of Industry 4.0 technologies like IoT and AI, are expected to further revolutionize bending machine operations, improving automation, precision, and overall efficiency. As industries continue to rely on custom-fabricated metal parts, the demand for advanced and versatile press brake solutions will undoubtedly continue to grow, solidifying their position as a cornerstone of modern manufacturing.
