What is the tolerance of a press brake?

Curious about press brake tolerance? This key factor determines how accurately a press brake bends metal, typically achieving ±0.5° for bend angles and ±0.1–0.2 mm for positioning. In this article, we’ll explore what these numbers mean, what affects them, and how to ensure precision in your metal fabrication projects.

Key Points

• Research suggests press brake tolerance is typically ±0.5° for bend angle and ±0.1 to ±0.2 mm for linear positioning when well-maintained.
• These values can vary based on machine type, maintenance, and material, with some modern CNC press brakes achieving tighter tolerances.
• There’s debate on standard tolerances, with some sources suggesting ±1° is typical, but recent evidence leans toward ±0.5° for high-precision applications.

What is Press Brake Tolerance?

A press brake is a machine used to bend sheet metal, and its tolerance refers to how accurately it can make bends. The bend angle tolerance is the allowable variation in the angle of the bend, while linear positioning tolerance is how precisely the bend is placed along the metal. These tolerances ensure the final product meets design specifications.

Typical Tolerance Values

For a well-maintained press brake, the average bend angle tolerance is ±0.5°, meaning the bend can be off by up to half a degree in either direction. For linear positioning, it’s typically ±0.1 to ±0.2 mm, which is very small and ensures the bend is in the right spot. These numbers come from recent studies and are common in modern metal fabrication.

Unexpected Detail: Impact of Maintenance

An interesting point is that regular maintenance, like calibration and cleaning, can significantly tighten these tolerances, sometimes achieving even better precision than the averages. This is especially true for CNC press brakes with advanced features, which might surprise users expecting fixed limits.

Survey Note: Detailed Analysis of Press Brake Tolerance

In the realm of metal fabrication, press brakes play a pivotal role in shaping sheet and plate metal into precise forms, and understanding their tolerance is crucial for achieving high-quality results. This section provides a comprehensive exploration of press brake tolerance, focusing on bend angle and linear positioning, and incorporates all relevant details from recent research and industry practices as of March 27, 2025.

Introduction to Press Brakes and Their Role

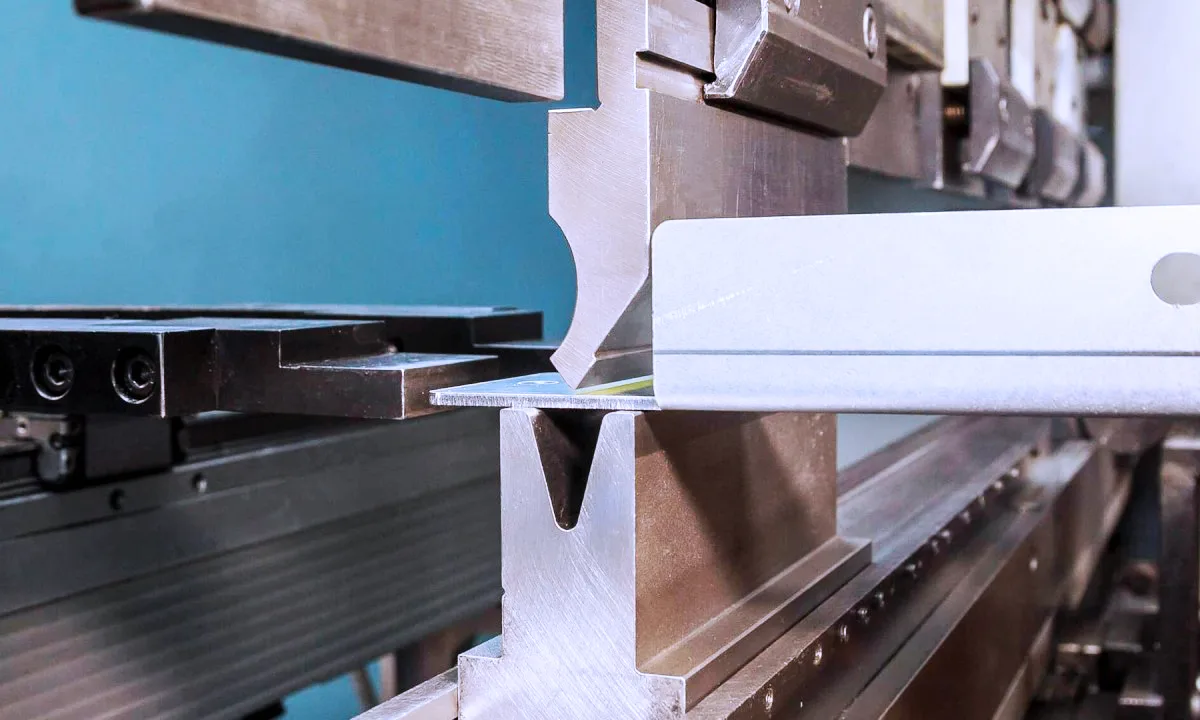

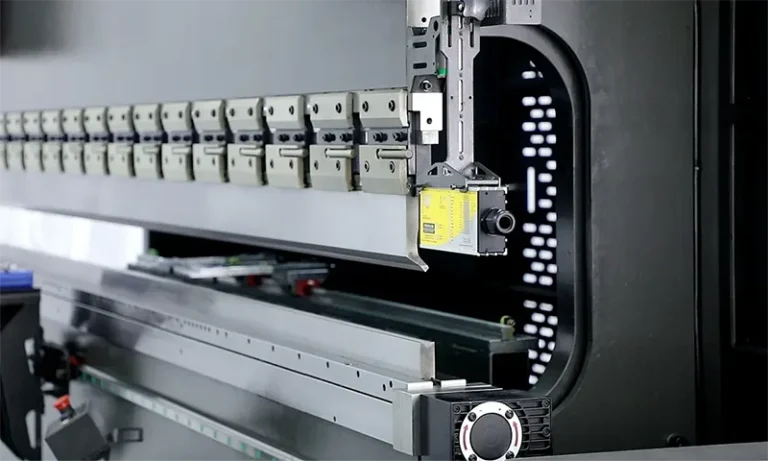

A press brake is a machine tool designed for bending sheet metal and metal plates by clamping the workpiece between a punch and a die, applying force to create predetermined bends. It is widely used in industries such as automotive, aerospace, and construction, where precision is paramount. The machine’s accuracy, or tolerance, determines how closely the final bend matches the intended design, affecting product quality and assembly fit.

Press brakes come in various types, including mechanical, hydraulic, and servo-electric, with modern CNC (Computer Numerical Control) models offering enhanced precision through automated controls. The tolerance of a press brake is particularly critical for ensuring repeatability and minimizing waste, especially in high-volume production.

Defining Tolerance in Press Brakes

Tolerance in the context of press brakes refers to the allowable deviation from specified dimensions or angles in the bent metal parts. Two key aspects are:

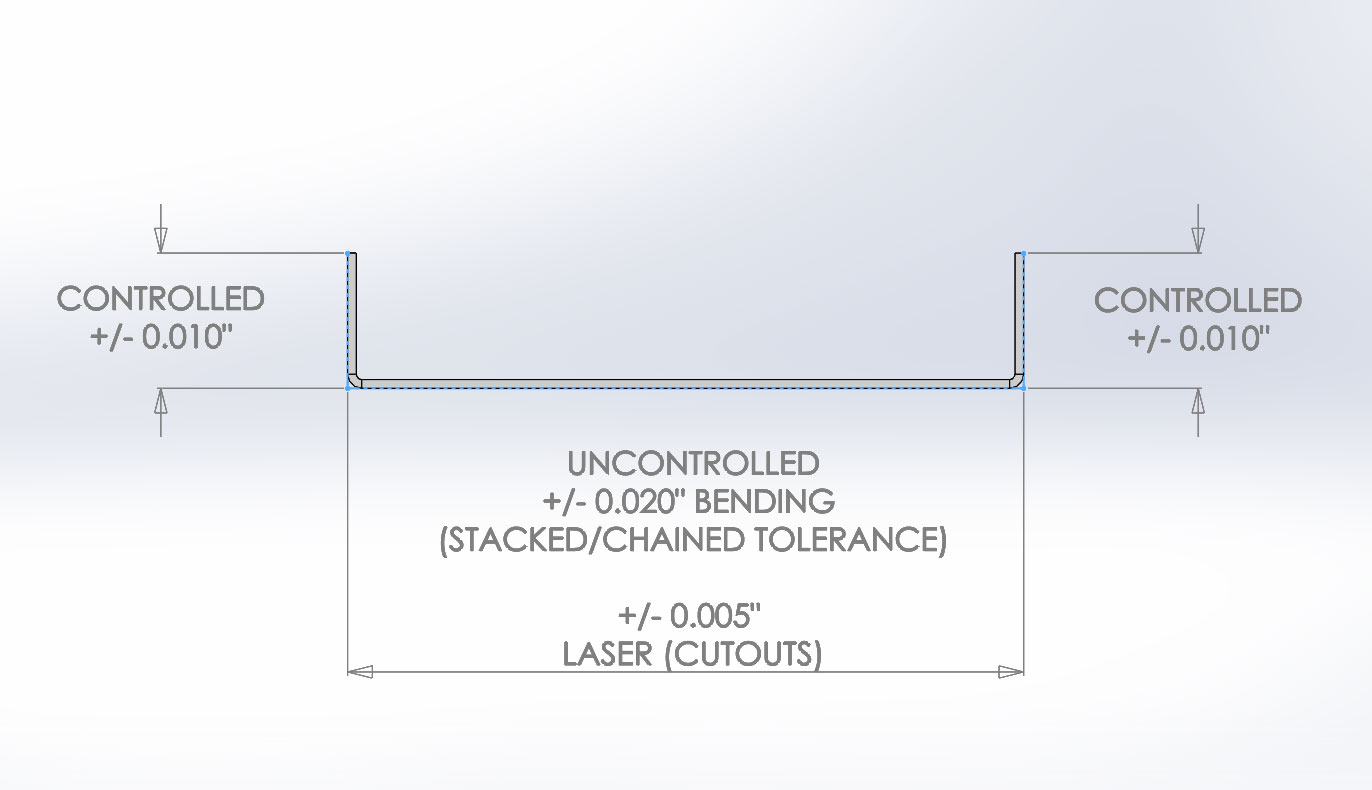

• Bend Angle Tolerance: This measures the variation in the angle of the bend, typically expressed in degrees. It is essential for ensuring the bent part meets design angles, such as 90° for a right-angle bend.

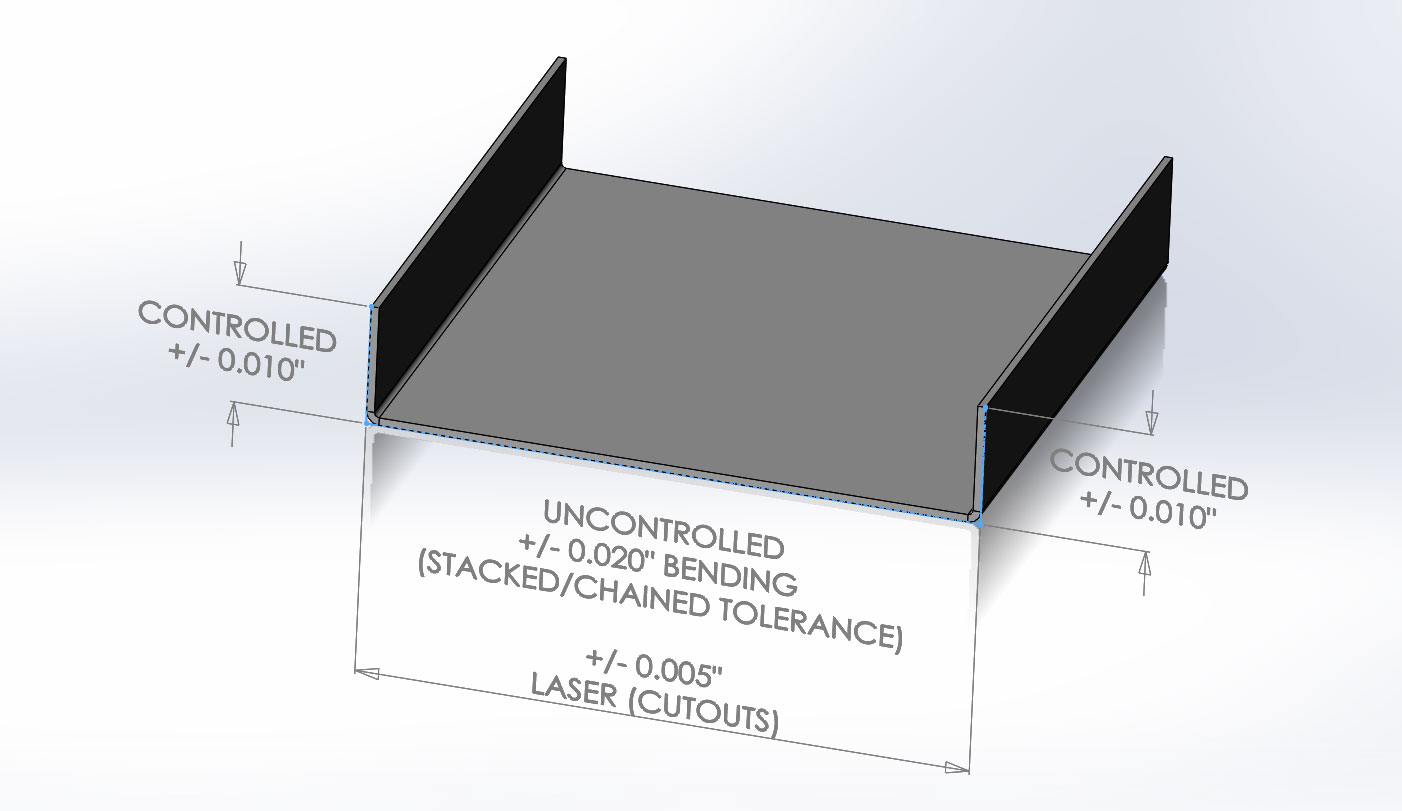

• Linear Positioning Tolerance: This pertains to the accuracy of the bend’s position along the length of the workpiece, often linked to the back gauge’s precision, and is usually measured in millimeters or inches.

These tolerances are influenced by multiple factors, including machine calibration, material properties, tooling quality, operator skill, and environmental conditions, making them a complex but critical aspect of metal fabrication.

Typical Tolerance Values and Supporting Evidence

Research suggests that, when properly maintained, press brakes typically achieve an average bend angle tolerance of ±0.5° and a linear positioning tolerance of ±0.1 to ±0.2 mm. These values were confirmed in a recent article from ACCURL Press Brake Accuracy: Tolerances and How to Improve Press Brake Bending Accuracy, published in January 2025, which states, “In practice, press brake accuracy typically achieves an average tolerance of ±0.5° in bend angle and ±0.1–0.2 mm in linear positioning when properly maintained.” This standard ensures effective operation within the varied demands of metal fabrication, reducing scrap rates and ensuring reliable fits during assembly.

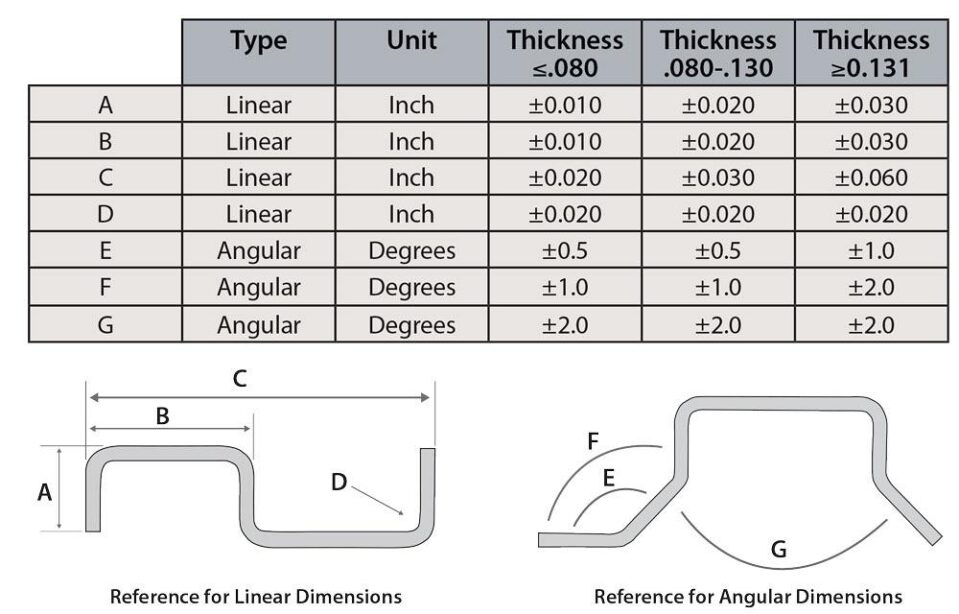

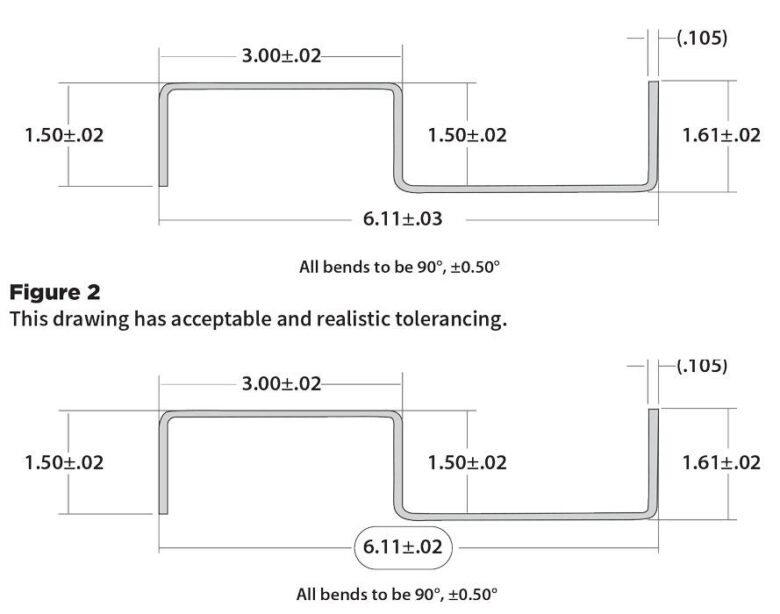

However, there is some variation in reported tolerances. For instance, an article from The Fabricator Reasonable tolerancing for press brake bending, published in September 2018, suggests that a typical bend angle tolerance might be ±1.0°, with recommendations to expand to 1 or 2 degrees for practicality depending on the end product. This discrepancy highlights a debate in the industry, with recent evidence leaning toward tighter tolerances like ±0.5° for high-precision applications, especially with modern CNC press brakes.

An example from MachineMFG The Impact of Press Brake Manufacturing Accuracy on Bending Precision, published in July 2023, illustrates this: a longitudinal deviation of 0.06 mm over a 3200 mm bed caused approximately 0.17° of angle variation, suggesting that under controlled conditions, angle variations can be less than 0.5°. This aligns with the tighter tolerance values, indicating that well-maintained machines can achieve high precision.

For linear positioning, the ±0.1 to ±0.2 mm range is supported by the same ACCURL article, which notes that under optimal conditions, CNC press brakes demonstrate exceptional positioning accuracy, often within 0.001″ to 0.004″ (0.025–0.1 mm), reinforcing the provided range.

Factors Influencing Press Brake Tolerance

Several factors can affect the achievable tolerance, making it important to consider the machine’s condition and operational environment:

• Machine Calibration and Maintenance: Regular calibration is essential, as worn-out components or misalignments can increase tolerances. For instance, the HARSLE article Press Brake Machine Back Gauge Calibration emphasizes that calibration ensures the back gauge moves accurately, preventing errors that lead to parts out of tolerance. The Shearchy article Sheet Metal Bending Machine Backgauge Accuracy from May 2019 notes that electro-hydro ratio servo synchronization can achieve repeating accuracy at ±0.1 mm, highlighting the importance of maintenance.
• Material Properties: Variations in material thickness, strength, and grain direction can impact bending accuracy. The Fabricator article Boosting bottom-bending accuracy on the press brake with these tips, published in May 2023, notes that a 16-ga. sheet can vary from 0.053 to 0.067 in., affecting bend angles significantly. This underscores the need for consistent material sourcing from reputable suppliers.
• Tooling Quality: The precision of the punch and die is crucial. The TRUMPF page TruBend 2100 mentions LaserDur tooling, twice precision-ground to match the CNC press brake’s accuracy, ensuring minimal wear and maintaining tight tolerances.
• Operator Skill: Skilled operators can make adjustments to compensate for material variations, as noted in the KRRASS article Press Brake Accuracy: Tips for Precision Bending, published in May 2024, which emphasizes the blend of art and science in press brake operations.
• Environmental Conditions: Temperature and humidity can cause material expansion or contraction, potentially affecting bending accuracy, as mentioned in the ADH Machine Tool article Solving Press Brake Bending Accuracy Problems, published in December 2024.

Industry Standards and Guidelines

While specific tolerance standards may vary, there are general guidelines and national standards that manufacturers follow. The ACCURL article references GB/T14349-2011 “Precision of press brakes,” a Chinese standard that specifies accuracy inspection and detection methods, though detailed public access to its specifics is limited. This standard underscores the importance of adhering to recognized benchmarks, ensuring consistency across operations.

Other standards, such as ANSI B11.3-2012 Safety Requirements for Power Press Brakes, focus on safety but indirectly support accuracy by ensuring proper machine operation. The variation in reported tolerances, as seen in different articles, suggests that industry practices are evolving, with modern CNC press brakes pushing for tighter tolerances like ±0.5°.

Practical Examples and Tables

To illustrate, consider the following table based on research findings, showing how different factors affect tolerance:

Factor	Impact on Tolerance	Example Value
Table Flatness Deviation	Can cause angle variation; 0.06 mm over 3200 mm → 0.17°	0.06 mm → 0.17° variation
Material Thickness Variation	Affects bend angle; 16-ga. can vary 0.053–0.067 in.	±0.007 in. variation
Back Gauge Calibration	Ensures linear positioning; can achieve ±0.1 mm repeatability	±0.1 mm typical
Tooling Wear	Increases angular variation over time	Not quantified, but significant

Another table from the ACCURL article provides insight into optimal conditions:

Parameter	Typical Tolerance	Under Optimal Conditions
Bend Angle	±0.5°	Can be tighter, e.g., ±0.23°
Linear Positioning	±0.1–0.2 mm	0.025–0.1 mm possible

These tables highlight the achievable precision and the impact of various factors, aiding in understanding the complexity of maintaining tight tolerances.

Improving Press Brake Accuracy

To achieve and maintain high accuracy, manufacturers can adopt the following best practices:

• Regular Maintenance: Schedule routine inspections, as suggested by ADH Machine Tool How to Properly Evaluate the Condition of a Used Press Brake, published in February 2025, to ensure components like rams and back gauges are in optimal condition.
• Proper Calibration: Perform periodic calibration using precision tools like dial indicators, as noted in the same ADH article, to maintain ram position and back gauge alignment.
• Use Quality Tooling: Invest in precision-ground tooling, as TRUMPF does with LaserDur, to minimize wear and maintain accuracy.
• Material Consistency: Source materials with consistent properties, as recommended by KRRASS, to reduce variability in bending.
• Operator Training: Provide ongoing training to enhance skills, ensuring operators can adjust for material variations and machine settings effectively.

Conclusion

The tolerance of a press brake, typically ±0.5° for bend angle and ±0.1 to ±0.2 mm for linear positioning when properly maintained, reflects the machine’s precision in metal bending. These values can vary based on machine type, maintenance, and material, with modern CNC press brakes potentially achieving tighter tolerances. Factors like calibration, tooling quality, and operator skill play significant roles, and adhering to standards like GB/T14349-2011 ensures consistency. By understanding and managing these tolerances, manufacturers can optimize their operations, reduce waste, and meet the rigorous demands of metal fabrication as of March 27, 2025.

Key Citations

• Press Brake Accuracy: Tolerances and How to Improve Press Brake Bending Accuracy
• Reasonable tolerancing for press brake bending
• The Impact of Press Brake Manufacturing Accuracy on Bending Precision
• Boosting bottom-bending accuracy on the press brake with these tips
• Press Brake Machine Back Gauge Calibration
• Sheet Metal Bending Machine Backgauge Accuracy
• Press Brake Accuracy: Tips for Precision Bending
• Solving Press Brake Bending Accuracy Problems
• How to Properly Evaluate the Condition of a Used Press Brake
• TruBend 2100
• Safety Requirements for Power Press Brakes
